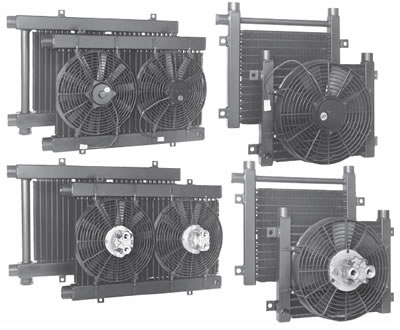

MF Series

Thermal Transfer Heat Exchangers:

Air Cooled Heat Exchangers



Features:

  Same as M Series with DC Fan or
Hydraulic Motor
  3/8” Tube Size
  Aluminum Fins
  Low AMP Draw 12 or 24 Volt DC Motor
  Heavy Duty Construction
  Optional Serviceable Relief
Bypass Valve
  Optional Fan Control Switch
  Long Life Hydraulic Motors
  Heat Removal TO 50,000 BTU/Hr.
  Oil Flows to 150 GPM
  Mounting Brackets Included
  SAE, NPT or 37° Flare Oil Connections
  Rugged Steel Manifolds



Ratings:

  Operating Pressure: 300 psi
  Operating Temperature 350° F



Materials:

  Tubes Copper
  Fins Aluminum
  Turbulators Steel
  Manifolds Steel
  Fan Assembly High Impact Plastic
  Motor Displacement .22in3/Rev. (Hydraulic)
  Maximum Pressure 2000 PSI (Hydraulic)
  Allowable Backpressure 1000 PSI (Hydraulic)

MF
