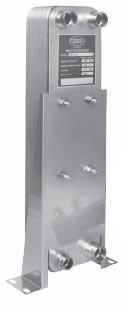

BPCH Series:

Thermal Transfer Products:

Sales, Service & Support

Stainless steel brazed plate coolers for various applications.


	Products:
	Water-to-Oil Cooling
	- Stainless Steel Construction	- Corrosion Resistant TYPE 316
	- Stacked Plate	- Mounting Studs Standard
	- Copper Brazed	- SAE Oil Connections
	- High Performance	- NPT Water Connections
	- Compact Design	- Optional Mounting Bracket
	- SAE Connections	- Nicke/Chrome Options

	Ratings:
	Maximum Temp: 350 F at 450psi
	Maximum Pressure: 450psi
	Test Pressure: 600psi
	Materials:
	Plate Material: 316L Stainless
	Braze Material: Copper Standard
	Stud Bolts: 304 Stainless
	F/B Pressure Plates: 304 Stainless
	Connectors: 304 Stainless
	Foot Brackets: 304 Stainless

	- PDF DATASHEET
	- PDF DATASHEET (DISCONTINUED UNITS)
	- Buy Online

Notes: When ordering, add description of all four connections (sweat or Male Pipe Thread MPT and size).
Some applications may require that the In and Out connections be reversed. Consult factory for recommendations.

Quotes, Engineering & Ordering Information: Industrial Heat Transfer, please contact us: 1-805-484-2992
